PH-M2030 metallographic microscopes

share:
  • Description
  • Features
  • Download
  • PH-M2030 reflected and transimitted metallurgical microscopes are suitable to observe the surfaces of non-transparent object or transparent object.They are equipped with vertical illuminator and tramsmitted illuminator,plan achromatic objectives with long working distance(no cover glass),wide-field eyepieces and set polarizer device in trinocular.They provide clear and high-contrast picture,convient operation and etc.They are the ideal instruments for research work in metallography,precision engineering,electronics and etc.They are suitable for scientific research,teaching demonstration in the colleges and factory.

    Performance Characteristics

    ▲Configure large-field eyepieces and long distance plan achromatic objectives (no cover glass ),  large and clear view field .

    ▲ Coaxial coarse and fine focusing knob, coarse elastic adjustable, with locking and limit device, fine focusing range: 2μm.

    ▲Equipped with two sets of illumination systems, it can be used for microscopic observation of opaque or transparent objects.

    ▲6V20W halogen lamp,brightness adjustable .

    ▲Trinocular tube, which can switch between normal observation and polarized light observation, and can perform 100% light transmission photography.

    Product details:

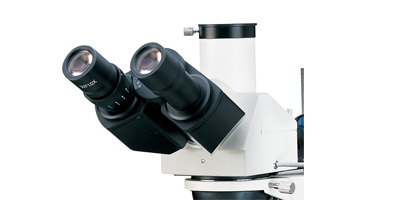

    ● Observation system

    Compensation observation tube: trinocular, single diopter adjustable, 30° inclined, can be connected to the camera.




    ● Eyepiece

    WF10X wide field plan eyepieces, field Φ18mm, can provide expanse and smooth observation space.

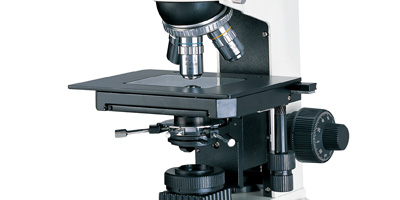

    ● Mechanical stage

    Double-layer mechanical stage, size: 185mmX140mm; moving range: 75mmX50mm, moderate design concept, it is more convenient and comfortable for users to operate the stage.

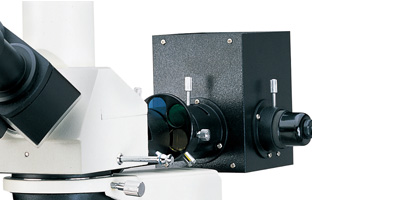

    ● Epi-illumination system

    6V 20W halogen lamp, brightness adjustable. Built-in field diaphragm, aperture diaphragm, (yellow, blue, green, frosted glass) color filter switching device. Puller polarizer can be circumrotated for 90°.




    ● Transmitted-illumination system

    Built-in halogen lamp illumination device: 6V 20W halogen lamp, brightness adjustable. Abbe condenser N.A.1.25 Rack& Pinion adjustable. Equipped with B filter and frosted glass.




    ● Light collector

    Light collector with field diaphragm.

    ● Condenser

    Abbe condenser NA1.25, lifting up and down.

    ● Photography Unit

    High-definition digital video recording and video observation can be realized by configuring video observation accessories (CCD adapter, digital camera adapter, digital SLR camera adapter, etc.).


  • PH-M2030 Metallurgical Microscope Main Parameters


    Model

    PH-M2030A

    PH-M2030B

    Viewing tube

    Trinocular, Inclination of 30° (Analyzer with field diaphragm to switch)

    Eyepiece

    Wide field  WF10X(Φ18mm)

    Objective

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL 5X/0.12

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL 5X/0.12

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L10X/0.25

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L10X/0.25

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L40X/0.60

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L40X/0.40

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L60X/0.75 (Spring)

    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L40X/0.60


    Plan achromatic objectives with

    long working distance (no cover glass)

    PL L60X/0.75 (Spring)

    Nosepiece

    Quadruple

    (Backward ball bearing inner locating)

    Quintuple

    (Backward ball bearing inner locating)

    Vertical illumination unit

    6V 20w, halogen lamp, brightness control

    Vertical illumination with field diaphragm,

    aperture diaphragm and polarizer, (Y, B, G)filter and frosted filter

    Focus system

    Coaxial coarse/fine focus system, with tensional adjustable and up stop,

    minimum division of fine focusing: 2μm

    Stage

    Double layer mechanical (Size:185mmX140mm, movingrange:75mmX50mm)

    Vertical illumination unit

    Abbe condenser  NA.1.25  Rack & pinion adjustable

    Blue filter and frosted filter

    Collector for halogen lamp

    6V 20w halogen lamp, brightness control

    Optional accessories

    Name

    Sort/Technique parameter

    Eyepiece

    Wide field  WF16X(Φ11mm)

    Dividing  10X(Φ18mm) 0.1mm/Div

    Objective

    Plan achromatic objectives with long working distance (no cover glass)

    PL L 50X/0.70

    Plan achromatic objectives with long working distance (no cover glass)

    PL L 80X/0.80

    Plan achromatic objectives with long working distance (no cover glass)

    PL L 100X/0.85 (Spring)

    Plan achromatic objectives with long working distance (no cover glass)

    PL 100X/1.25 (Spring, oil)

    Filter

    Green filter

    Yellow filter

    CCD adapter

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera

    USB output: USB2.0 USB3.0 5.0M/6.0M/10.0M/14.0M/20.0M pixel

    HDMI output: 2.0M/5.0M/8.0M/14.0M pixel

    Digital camera adapter

    CANON
