PH20W hermostat microscope

share:
  • Description
  • Features
  • Download
  • PH20 digital thermostat microscope is mainly used for animal husbandry(Thermostat microscopes are one of the essential equipment for artificial insemination laboratories). Most of the artificial insemination laboratories are not instantaneously completed,semen requires a stable temperature,37

    PH20 digital thermostat microscope is mainly used for animal husbandry(Thermostat microscopes are one of the essential equipment for artificial insemination laboratories). Most of the artificial insemination laboratories are not instantaneously completed,semen requires a stable temperature,37℃ sperm has the strongest vitality,most of the semen need to be maintained at 35℃-37℃ or so),sperm and blood breeding in medical treatment.

    Product Features:

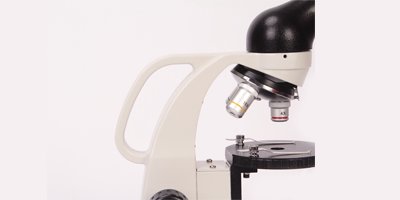

    ● Curved arm handle

    Built-in handle, easy to take and move

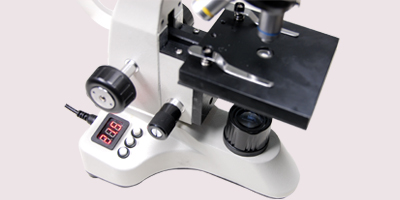

    ● Thermostat stage

    The heating stage is made of specially formed aluminum alloy, and the temperature rise is uniform and stable.

    The working surface temperature adopts LED digital display, accurate reading, temperature control range: room temperature -50℃

    Fast and uniform heating, easy operation and safe use

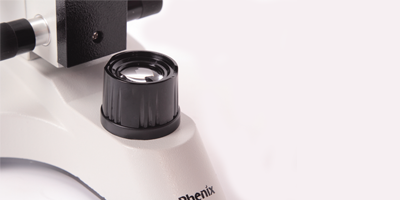

    ● Lighting system

    Plano-concave mirror, 40mm (optional)

    High-brightness LED, cold light source, rechargeable, adjustable brightness(standard)

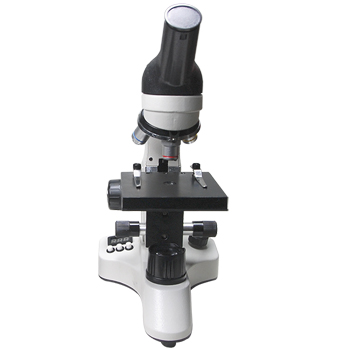

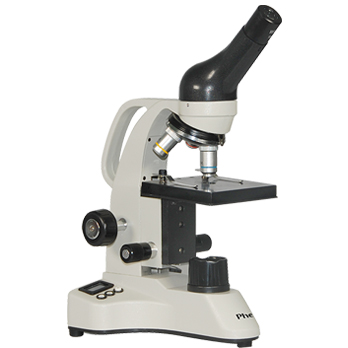

  • PH20W Hermostat Microscope Main Parameters


    Model Number

    PH20W

    Viewing tube

    Monocular, 45° inclined, 360° rotatable

    Eyepiece

    WF10X/16mm, H16X/10.5mm

    Objective

    Achromatic objective 4X

    Achromatic objective 10X

    Achromatic objective 40X(Spring)

    Nosepiece

    Three holes inward

    Homothermal stage

    Homothermal

    range

    Room temperature -50℃

    Control

    accuracy

    ≤±1℃

    Heating power

    12V

    Power

    36W

    Focusing system

    Different coarse and fine focusing knob,

    coarse focusing range 12mm,

    fine focusing graduation: 1.3mm

    Condenser

    Wool glass, single lens

    Illumination

    LED cold light source, high brightness, adjustable   brightness

    Power supply

    12V/4A switching power adapter

    Package

    Foam+Carton
